The Perfect Roommate Does Exist.

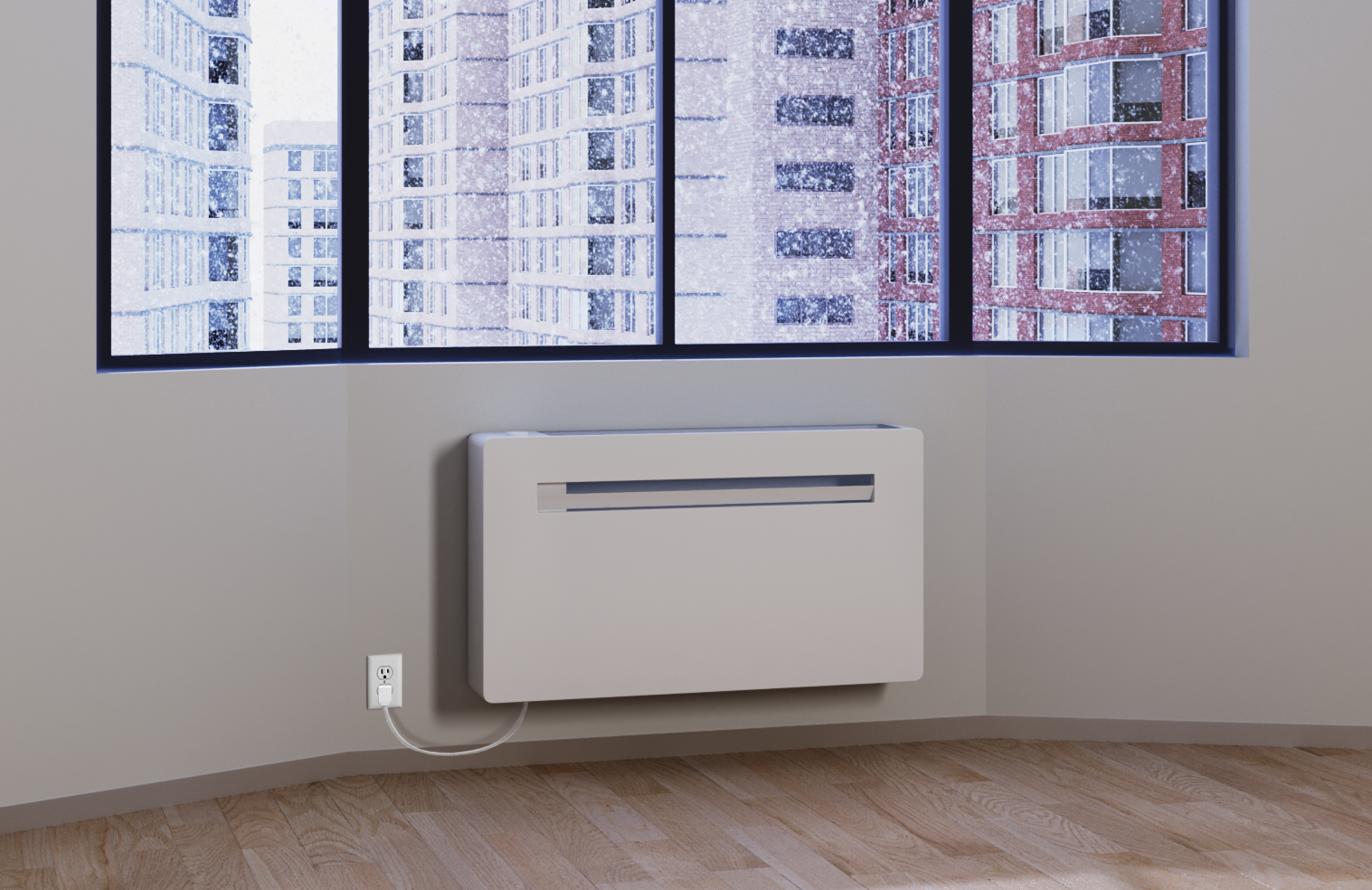

The Roommate is a self-contained high efficiency “micro heat pump” capable of heating, cooling, dehumidification, and fresh air circulation all in one compact footprint. A completely packaged unit, Roommate requires no outdoor condensing unit and plugs into a standard 115V or 230V outlet. 230V units come with an additional 1000W "heat boost" option for additional heating capacity.
No refrigerant handling, no custom wiring or piping, no extensive renovations. The quick and easy solution for the ultimate indoor climate control with extreme application flexibility.
![Roommate-interior2_Crop](/Content/Img/Roommate/Roommate-interior2_Crop.png?v=638482749014281884)
SIMPLICITY AT ITS BEST…
Simple to Design, Engineer, Install, and Maintain
Literature
Features and Benefits
![Roommateopen-Front](/Content/img/Roommate/Roommateopen-Front.png)
No Outdoor Unit!
![Asset 7](/Content/img/Roommate/Asset 7.png)
Eco-friendly R32 Refrigerant
![Asset 8](/Content/img/Roommate/Asset 8.png)
Next-gen R32 refrigerant offers increased efficiencies and greater capacities utilizing less overall total refrigerant volume.
Easy to Design, Install & Maintain
![Asset 9](/Content/img/Roommate/Asset 9.png)
Smart Life App
![Asset 10](/Content/img/Roommate/Asset 10.png)
Smart Life is a secure smart device management app to control and manage smart home products easily and conveniently. Compatible with Android and Apple platforms.
High Efficiency Through-the-Wall Indoor “Micro” Heat Pump
![Asset 1](/Content/img/Roommate/Asset 1.png)
All season operation with heating, cooling, dehumidification and fresh air circulation.
![Asset 2](/Content/img/Roommate/Asset 2.png)
Roommate can be configured by either remote control or using the Smart Life WIFI control app. Optional wall mount avaliable.
![Asset 3](/Content/img/Roommate/Asset 3.png)
Units have a self-evaporative condensate removal system. (Units still require a condensate drain as a failsafe)
![Asset 4](/Content/img/Roommate/Asset 4.png)
Aesthetically pleasing compact, durable design offers application flexibility with minimal side clearance. Units can be painted to match any décor.
![Asset 5](/Content/img/Roommate/Asset 5.png)
High efficiency inverter compressor with variable speed fan for quiet comfort and extended equipment life.
![Asset 6](/Content/img/Roommate/Asset 6.png)
Air is directed through an electronically controlled air louver for optimal distribution.
Specifications and Performance
Specifications
Units | MHP10 | MHP11 | ||
---|---|---|---|---|
Cooling | Capacity Range | BTU/hr | 1000-14,000 | 1000-14,000 |
Efficiency Range | EER (BTU/W) | 5-13 | 5-14 | |
Ambient Temp Range | °F (°C) | 23-110 (-5 - 43) | 23-110 (-5 - 43) | |
Nominal Capacity* | BTU/hr | 12,000 | 12,000 | |
Nominal Efficiency* | EER (BTU/W) | 9.8 | 9.8 | |
Heating | Capacity Range | BTU/hr | 1,000-11,200 | 1,000-11,200 |
Efficiency Range | COP (W/W) | 1.76-4.69 | 1.76-4.69 | |
Ambient Temp Range | °F (°C) | 5-110 (-15 - 43) | 6-110 (-15 - 43) | |
Nominal Capacity** | BTU/hr | 11,200 | 11,200/14,600*** | |
Nominal Efficiency** | COP (W/W) | 3.5 | 3.5/2.4*** | |
Electrical | Power | V/Ph/Hz | 115/1/60 | 230/1/60 |
Fan Motor Exhaust | A | 0.88 | 0.44 | |
Fan Motor Supply | A | 0.18 | 0.09 | |
Compressor Motor | A | 6.2 | 3.1 | |
Electric Strip Heater | A | - | 4.3 | |
Refrigerant | Type | R32 | ||
Factory Charge | lbs. (kg) | 0.55 (0.25) | ||
Fan | Quantity | 1 | ||
Power Input | W | 25 | ||
Type | Variable | |||
High Speed (Heat/Cool) | CFM | 282/311 | ||
Medium Speed (Heat/Cool) | CFM | 247/277 | ||
Low Speed (Heat/Cool) | CFM | 194/194 | ||
Sound (@ 3meters) | Maximum | dBA | 46 | |
Compressor | Type | Inverter | ||
Speed Range | Hz | 30-80 | ||
Brand | GMCC | |||
Quantity | 1 | |||
Dimensions | Net Dimensions (D x W x H) | inch (cm) | 8 x 40 x 23 (21 x 102 x 59) | |
Shipping Dimensions (D x W x H) | inch (cm) | 13 x 44 x 26 (33 x 112 x 66) | ||
Net Weight | lbs. (kg) | 94 (43) | ||
Shipping Weight | lbs. (kg) | 107 (49) |
* 95°F outdoor air temperature, 80°F entering room air
** 47°F outdoor air temperature, 70°F entering room air
*** Performance with 1kW electric strip heater engaged

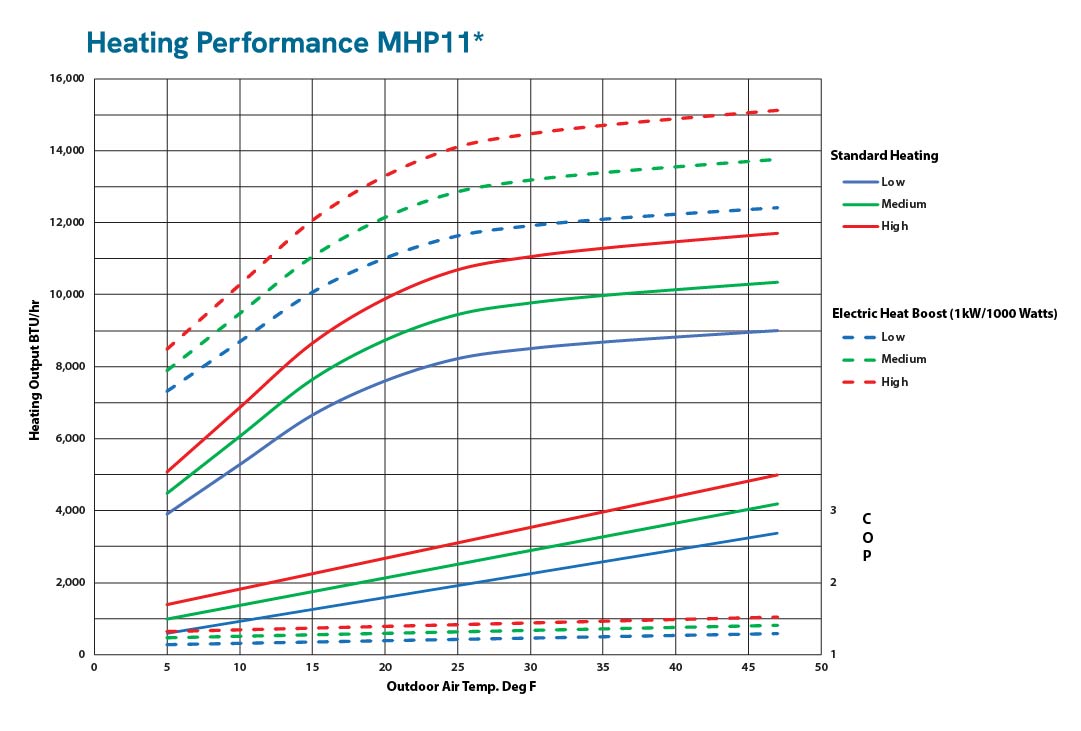

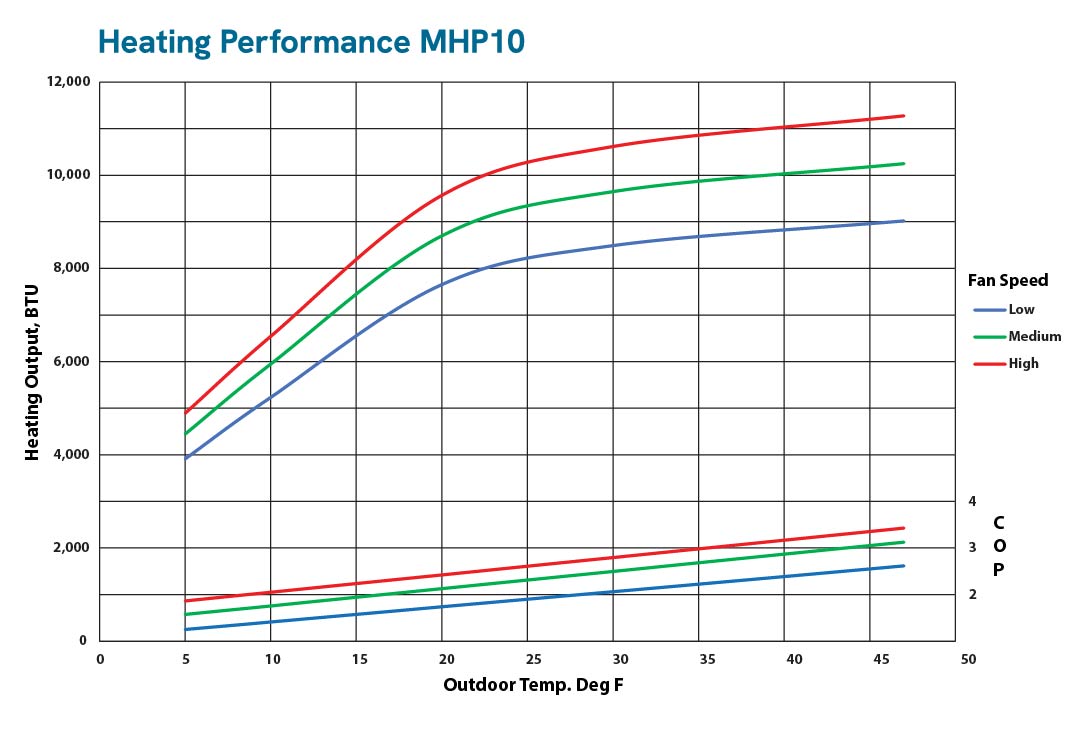

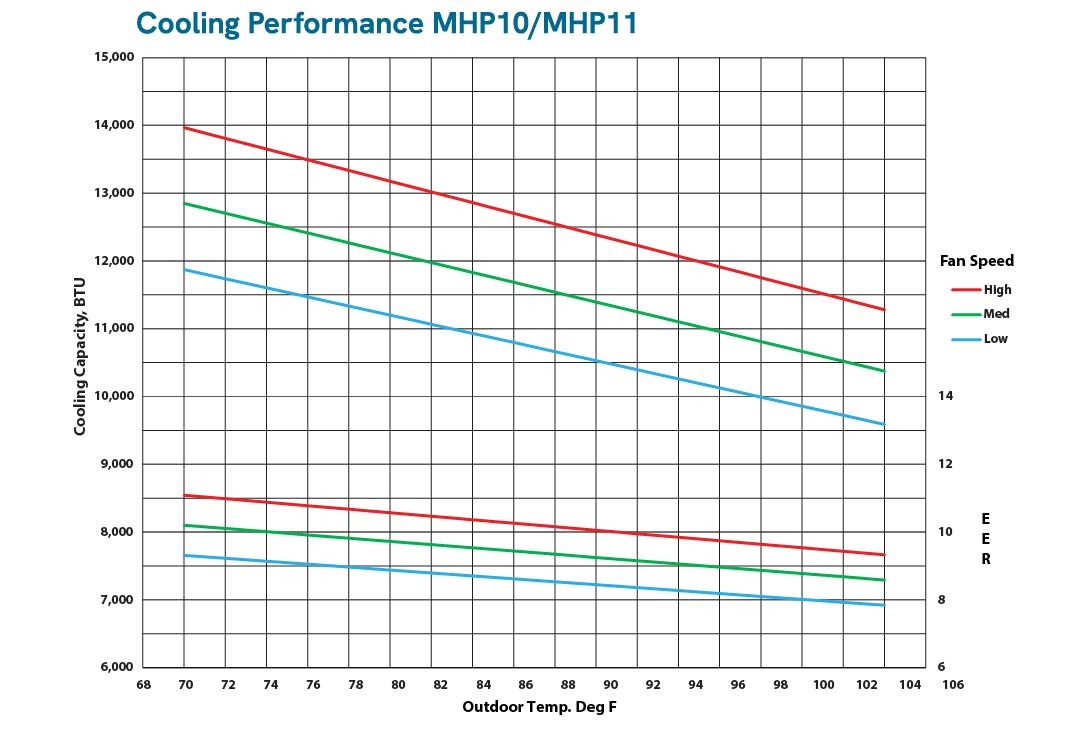

Performance
Dimensions
![Roommate-dimentions](/Content/img/DesignLine-Placeholder.jpg?v=638572558369910888)
Alternate External Louvers
Approved for the DesignLine Roommate thru-the-wall heat pump as alternates to the standard round louver set ups, while improving overall architectural appearance in commercial settings.
Louvers are available in both flanged and concealed flange configurations and are made of heavy duty extruded aluminum and designed to maintain a water-tight seal in any application.

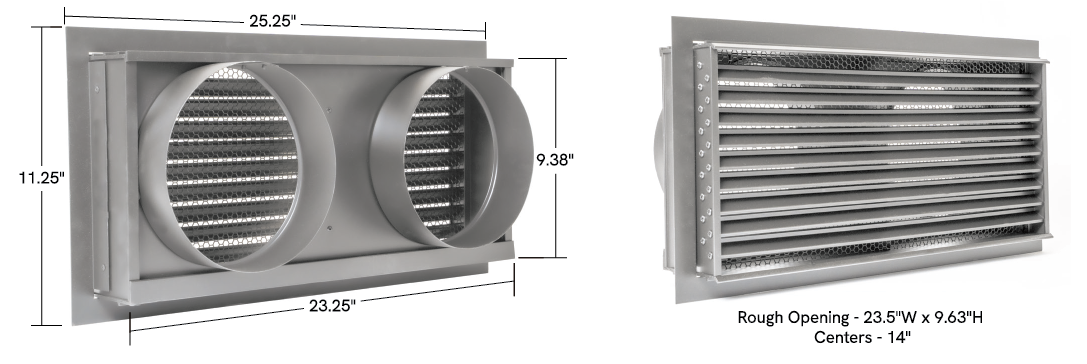

EXH7 – Concealed Flange (45W51-DL0092-10)
![Concealed-Flange-01](/Content/img/Roommate/Concealed-Flange-01.png?v=638572444273622793)
Features & Benefits
• Bottom Internal Drip Edge: Additional protection from water intrusion between the louver and exterior wall surface.
• Pitched Base: 5° pitched based at the bottom of the plenum box allows for removal of any interior water further preventing any water build-up internally.
• Internal Water Stop: Prevents water intrusion from entering the wall assembly from inside the louver configuration itself.
• Custom Colors Available – Consult Factory

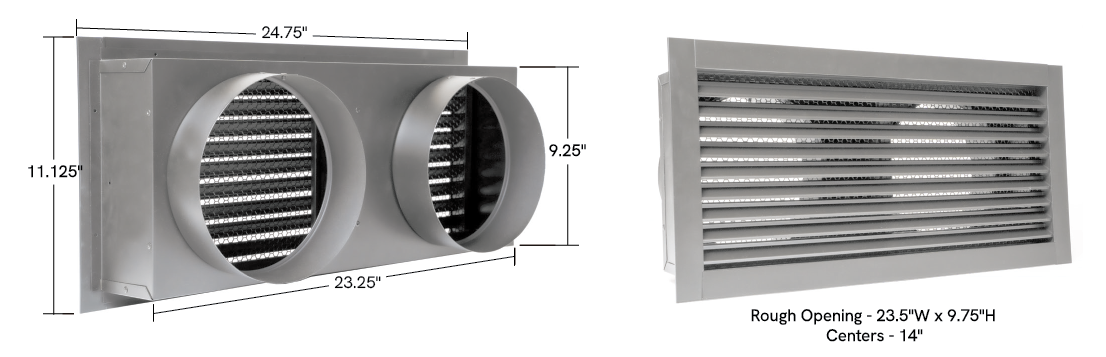

FLH7 – Standard Flange (45W51-DL0091-10)
![Concealed-Flange-02](/Content/img/Roommate/Concealed-Flange-02.png?v=638572444274522475)
Features & Benefits
• Top External Rain Hood: Prevents water intrusion between the louver and exterior wall surface.
• Internal Water Stop: Prevents water intrusion from entering the wall assembly from inside the louver configuration itself.
• Bottom External Drip Edge: Additional protection from water intrusion between the louver and exterior wall surface.
• Custom Colors Available – Consult Factory

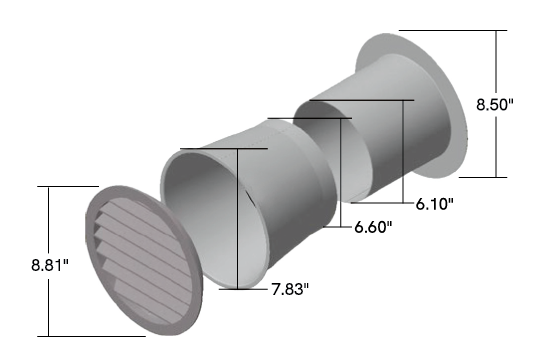

RLA6 Louver Assembly (45W51-DL0094-10)
![Louver-assembly-01](/Content/img/Roommate/Louver-assembly-01.png?v=638572444275021633)
3-part sleeved assembly with both outer and inner tapered sleeves designed more a maximum depth adjustability of 2.5". Sleeve configurations are available in 3 different lengths to fit most wall thicknesses. Exterior louver assembly is made from durable cast aluminum and fits seamlessly to the tapered sleeve mechanism.
Installation consists of installing the outer sleeve/louver onto the wall and insulating accordingly around the taper of the out sleeve and corresponding insert sleeve and secured with hardware screws securing the wall between the flanges.

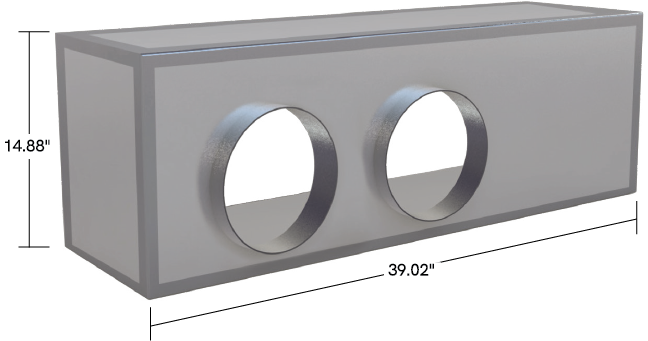

PTAC Adaptor (45W51-DL0093-10)
![PTAC](/Content/img/Roommate/PTAC.png?v=638572444275565997)
Custom order adapters designed to mount Roommate units in existing PTAC wall sleeves. Due to the variables in PTAC wall sleeves, adapters can be fully customized and are considered a special-order item. Adapters are designed to fill PTAC openings with minimal, to no external renovations, while providing an airtight seal for optimum efficiency.
Wall Mount
![Wall-mount](/Content/img/Roommate/Wall-mount.jpg?v=638572547047828562)

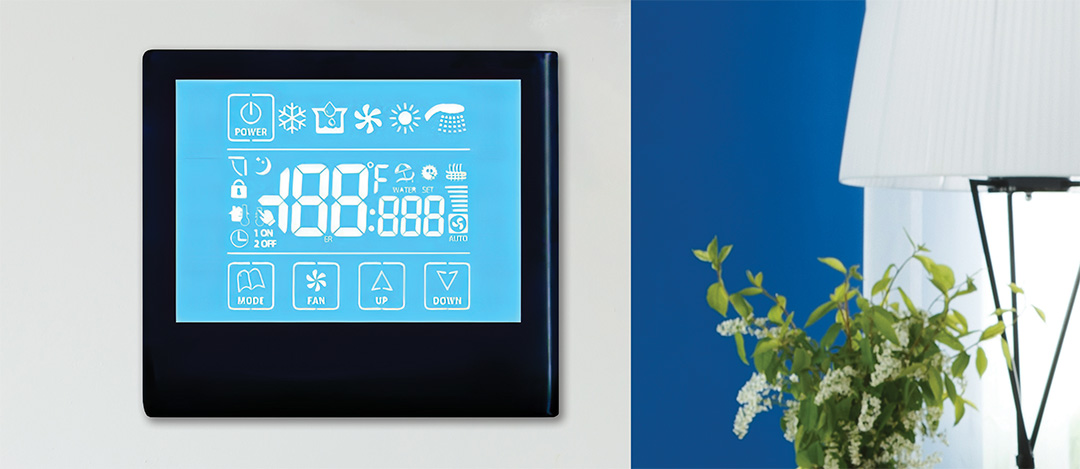

Wall Mount Control (Optional)
Basic control with color LCD display affords traditional "thermostat" functionality through a hard-wired wall-mounted control that mirrors the existing on-board, remote control and Smart Life wi-fi options.

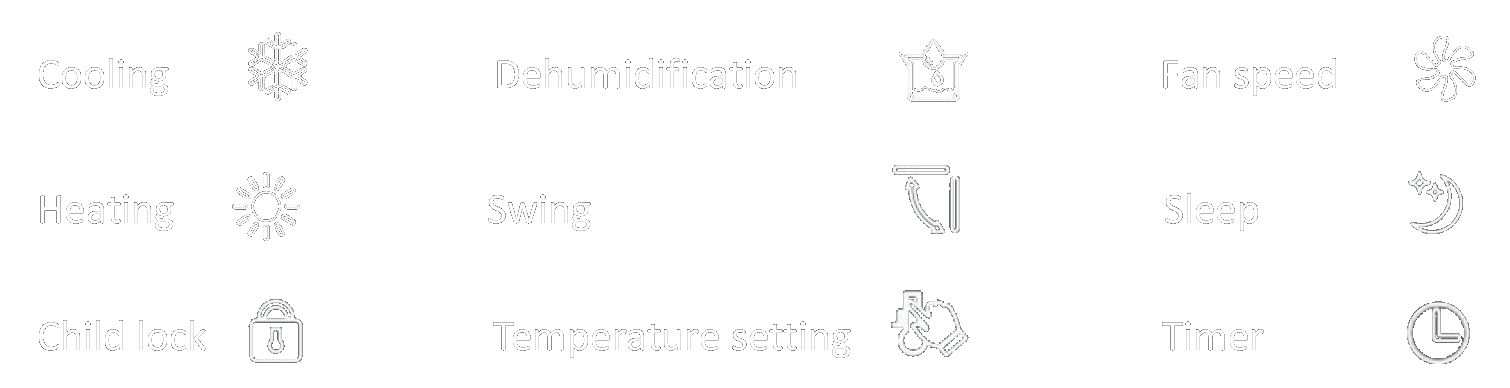

Specification
![Wall Mount Buttons](/Content/img/Roommate/Wall Mount Buttons.png?v=638572692734712598)
